Savaria Telecab Lift in Los Angeles
“To install residential elevators in California, you need a C-11 Elevator Contractor License from the state’s Contractors State License Board (CSLB). This license covers the fabrication, installation, and repair of all types of elevator systems and ensures compliance with safety and building codes. Call Before You Fall holds a current C11 License, in addition to a Class B, General Contractor License. Here is a link to check compliance : Click Here“
Request an Evaluation:
Features

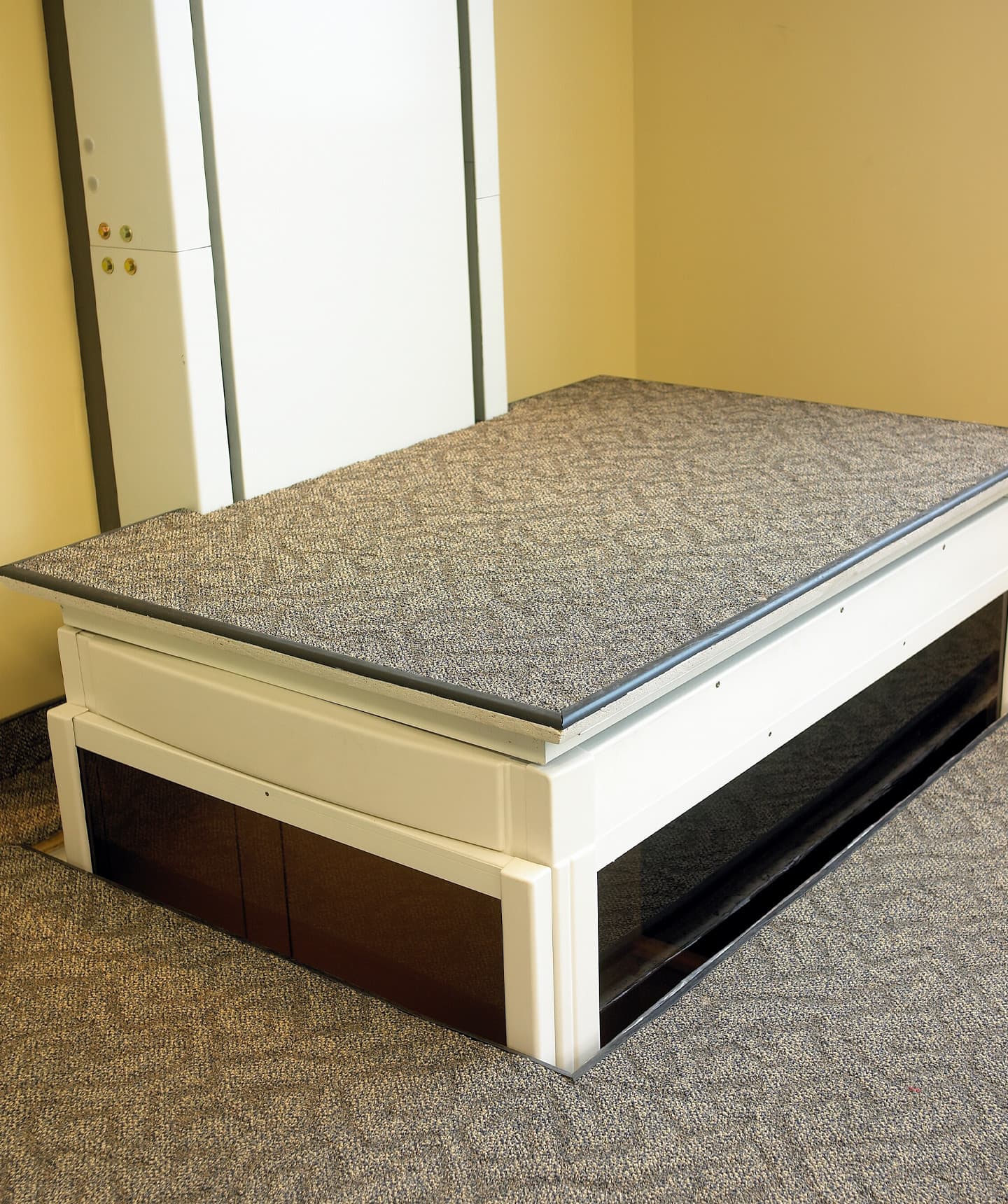

The Telecab features an all-in-one enclosed cab and drive tower, allowing it to travel smoothly through a floor cut-out — no hoistway or pit required. This minimalist design significantly reduces construction needs, requiring only a floor opening and support wall for installation.
Modern Aesthetics
With its neutral-toned design, clean lines, and compact footprint, the Telecab blends seamlessly into a variety of home interiors.
Reliable Performance
Equipped with a fully enclosed drive system, the Telecab ensures safe and dependable operation for daily use.
Key Standard Features:
-
Operates with continuous pressure buttons
-
Integrated telephone for added safety
-

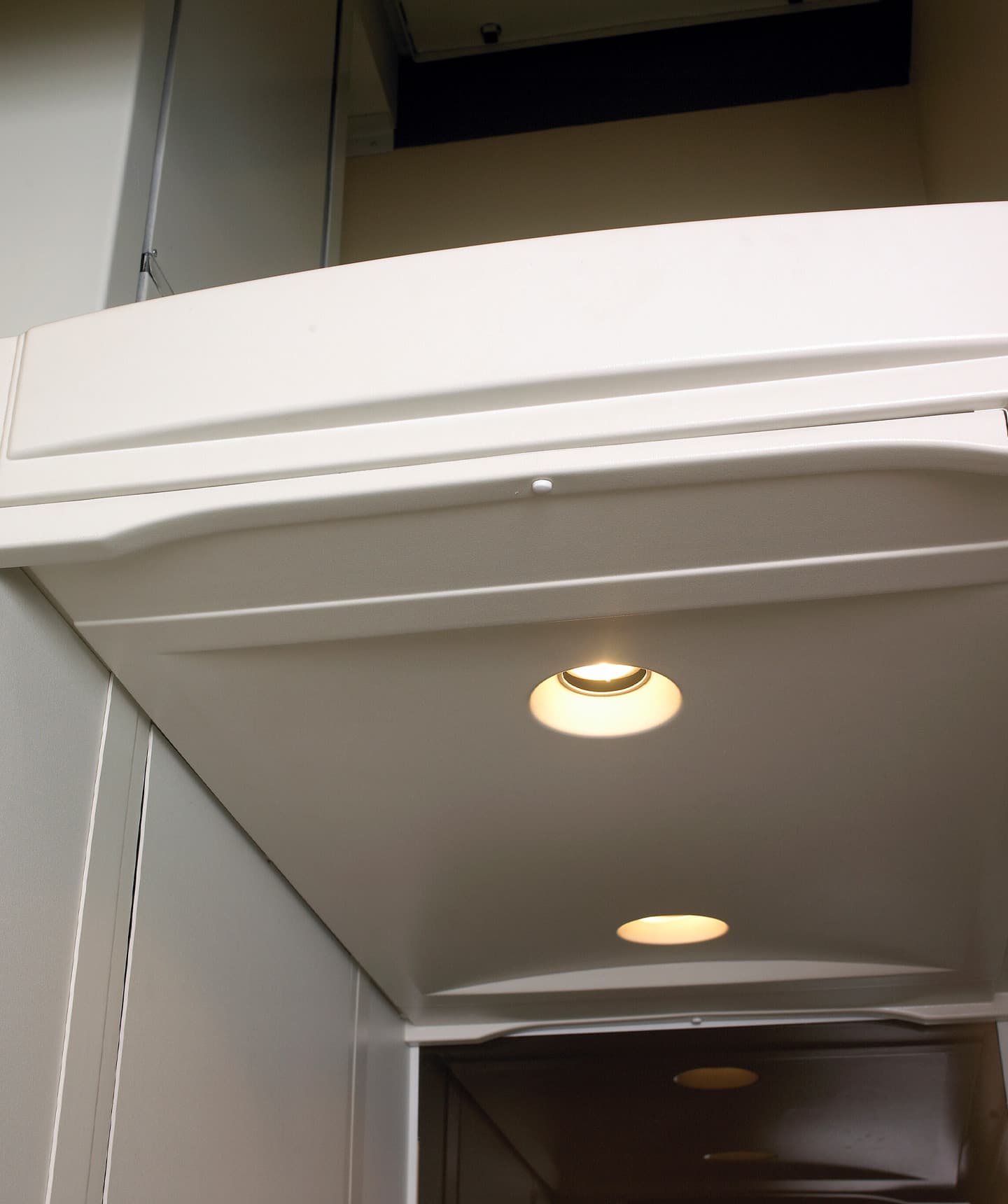

Two interior ceiling lights for visibility
-
Supports two stops
-
Cab dimensions: 30″ x 46″, 78″ high (76.2 cm x 116.8 cm, 198.1 cm tall)
Finishing Options:
-
White powder-coated finish
-
Acrylic window panels available in clear or bronze
Comprehensive Safety Features:
-
Interior lighting and nonskid platform
-
Emergency stop and alarm buttons
-
Battery-powered lowering and manual emergency lowering in case of power failure
-
Top and under-panel obstruction sensors
-
Pressure relief valve to prevent platform overload
-
Door interlock for safe operation
-
Slack chain safety device to prevent mechanical failures
Warranty:
-
36-month parts warranty for peace of mind
Product Description:
-
Space-saving through-the-floor lift, designed for accessibility and built on the reliable drive system of the popular Savaria V-1504 wheelchair lift
-
Serves two stops with up to 23 feet of travel and supports up to 500 lb, ideal for a passenger with a mobility device
(For a higher capacity of 845 lb, see the Savaria Telecab17) -
Non-skid platform with a gently sloped threshold for smooth, easy access with mobility devices
-
Choice of four standard cab sizes, with custom sizing available to fit unique spaces
-
Operates with continuous pressure buttons, featuring built-in safety sensors that stop the lift if an obstruction is detected in either direction
-
Minimal construction required for installation — no hoistway needed
-
Enclosed drive tower keeps all mechanical components protected and out of view
-
Full-height flush door with easy-grip handles and interior lighting in a spacious 78″ (1981 mm) cab
Optional configurations: Type 1, 2 and 5
Cab sizes:
W30″ x L46″ X H78″ (762 mm X 1168 mm x 1981 mm) Type 5 (standard)
W32″ X L53″ X H78″ (813 mm X 1346 mm X 1981 mm) Type 5
W30″ X L47″ X H78″(762 mm X 1194 mm X 1981 mm) Type 1, 2
W32″ X L54″ X H78″ (813 mm X 1372 mm x 1981 mm) Type 1, 2
Optional cab finishes: Custom color powder coat
Other options: Battery power for up/down, two-door for left and right access, keyed call station, motorized door operation, hydraulic door closer, custom cab size, flush-mount or surface-mount call send station. Also optional, Savaria One Touch Alert System. Using an owner-supplied, pre-paid nano sim card*, this one-button system installed by us, provides two-way communication to pre-programmed emergency contacts in case of emergency.
*not compatible with 5G or eSIM cards.
Applications: Residential, indoors
Capacity: 500 lb (228 kg)
Maximum travel distance: 23′ (7 m) with 2 stops
Nominal speed: 20 ft/min (0.10 m/s)
Minimum floor cutout: 36″ x 60.5″ (914 mm x 1537 mm)
Minimum overhead required: 96″ (2438 mm) to have 6″ minimum clearance by code,
92″ (2337 mm) requires variance
Drive: 2:1 roller chain hydraulic
Motor/pump: 24 VDC, 3 hp (2.1 kW) gear type
Power supply required: 110 VAC, 20 A, 60 Hz, single phase
