Delta Inclined Platform Lift in Los Angeles

Features

Affordable Accessibility:
Gain access without the need for major renovations — a cost-effective solution for residential and commercial spaces.

Space-Saving Design:

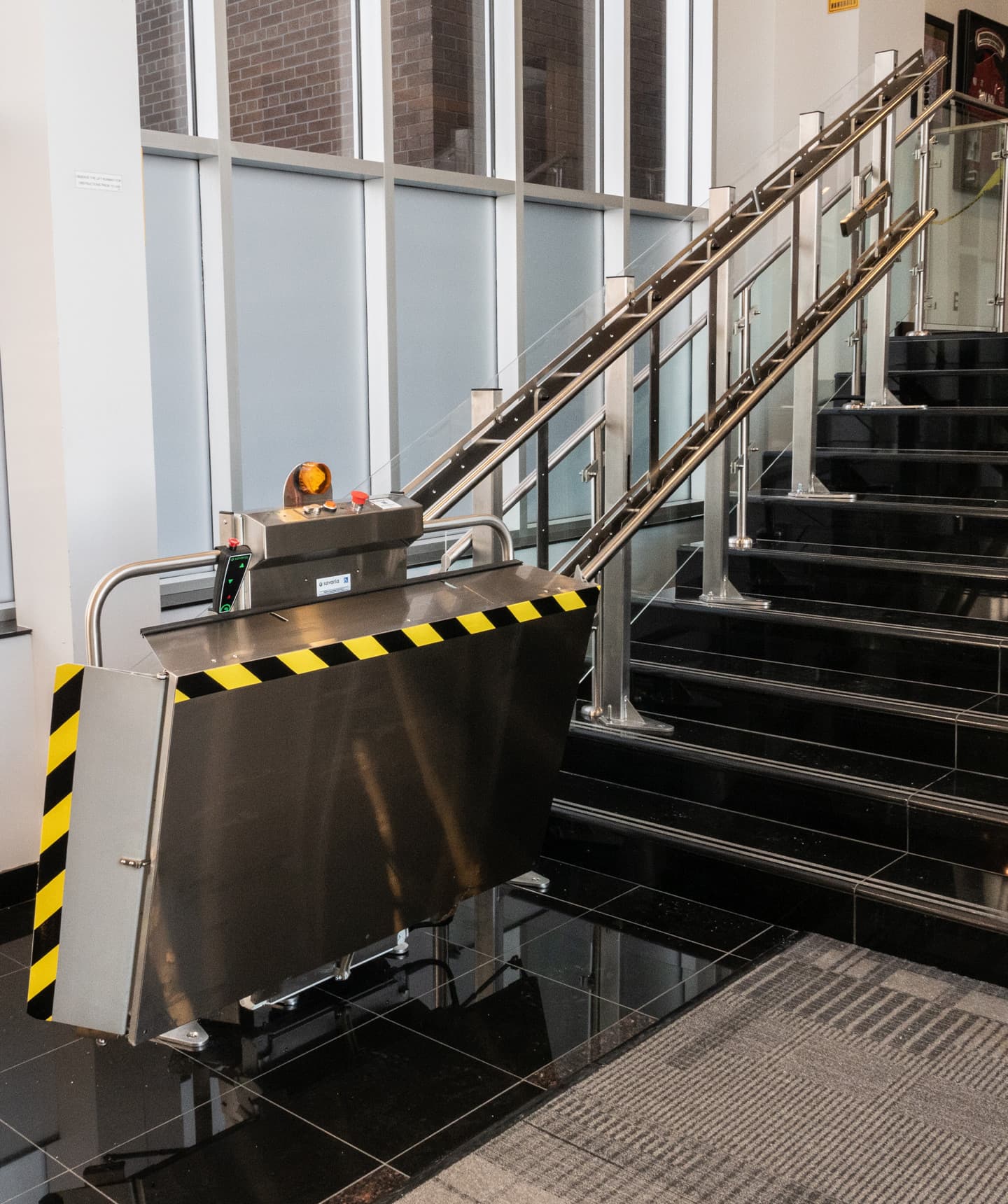

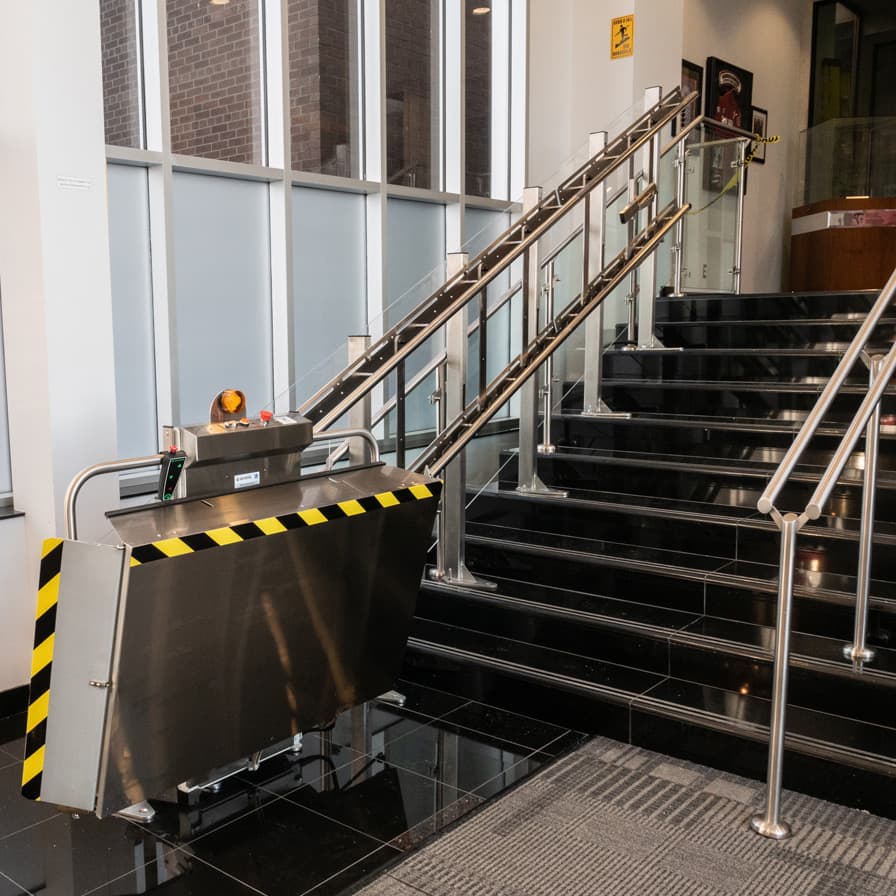

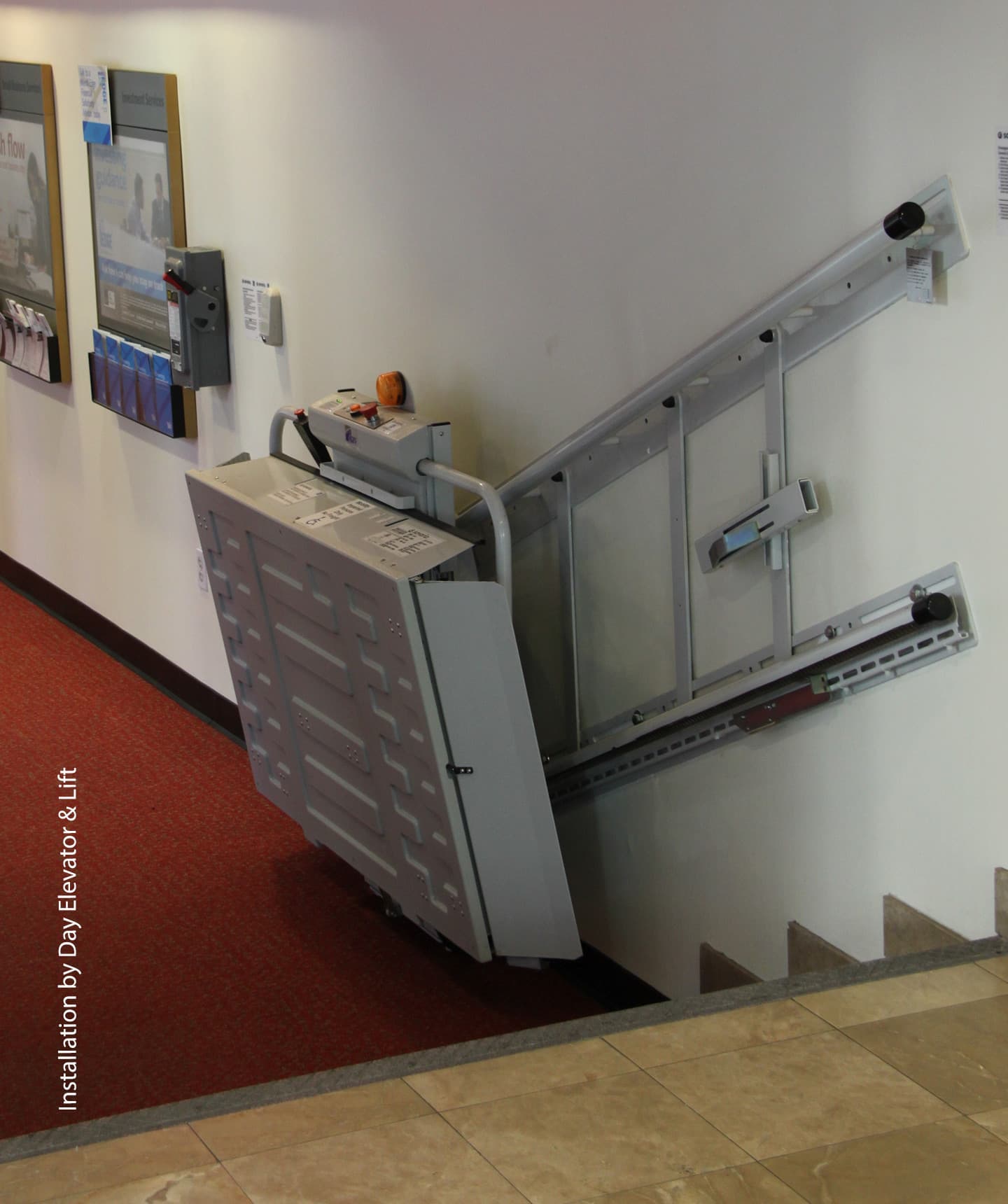

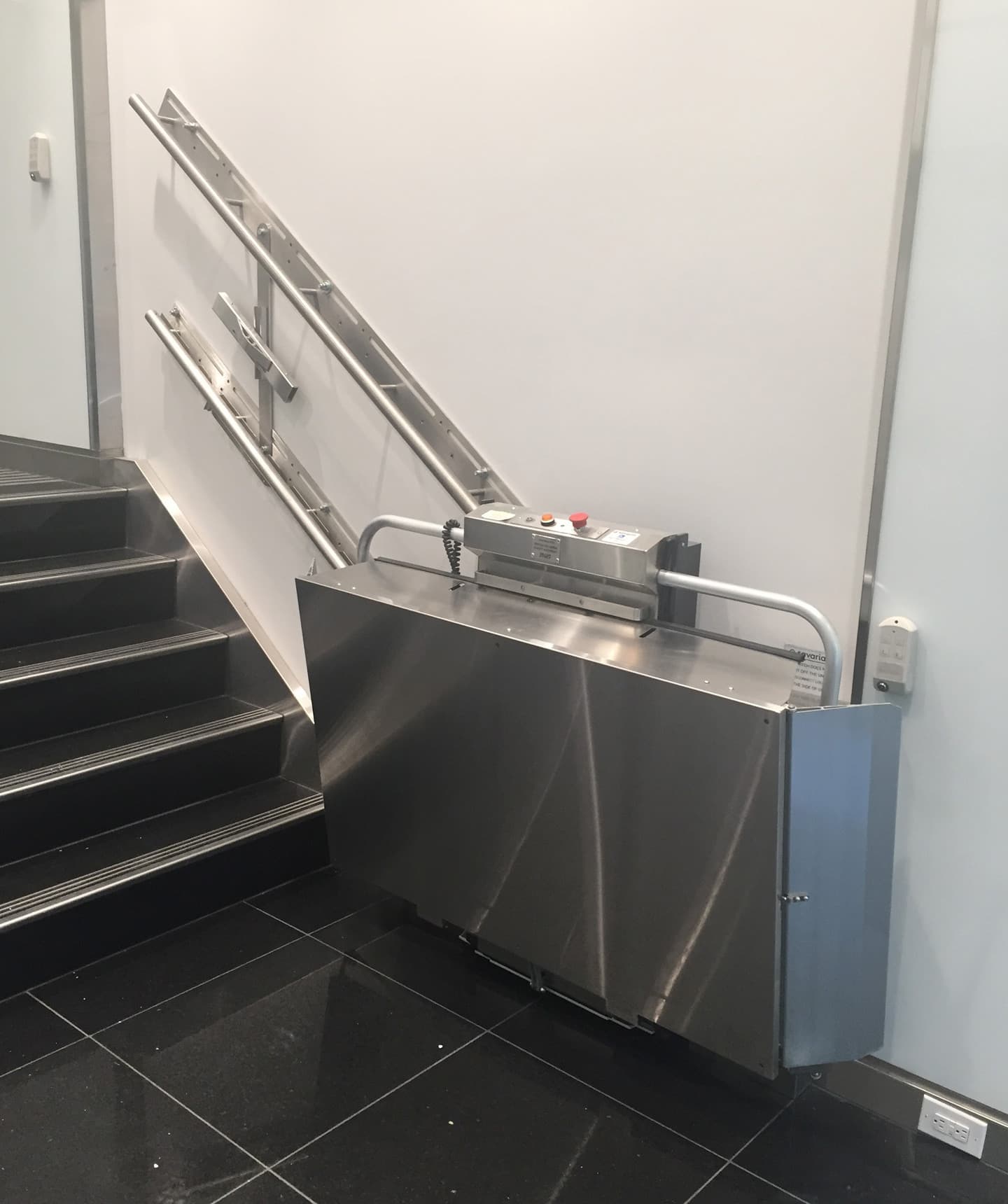

Sleek traveling rails and a foldaway platform keep stairs clear when the lift is not in use.

No Machine Room Required:
The drive system is integrated into the lift itself, eliminating the need for a separate machine room.

Battery Powered with Charging Stations:
Operates even during power outages. Charging stations at the top and bottom ensure the unit is always ready for use.

Standard Features Include:

  • Constant-pressure controls for safe operation

  • Onboard motor

  • Modular rail system

  • Manual folding platform

  • Pendant control

  • Keyed call stations and operation for added security

Standard Finish:
Light gray (RAL 7035)

ADA-Compliant Platform (Optional):
Available to meet public accessibility standards.

Safety Features:

  • Obstruction sensors on the platform

  • Non-skid surface with side safety flaps

  • Overspeed governor

  • Manual lowering device

  • Emergency stop button and keyed access

Warranty:
Includes a 36-month parts warranty.

Product Description:

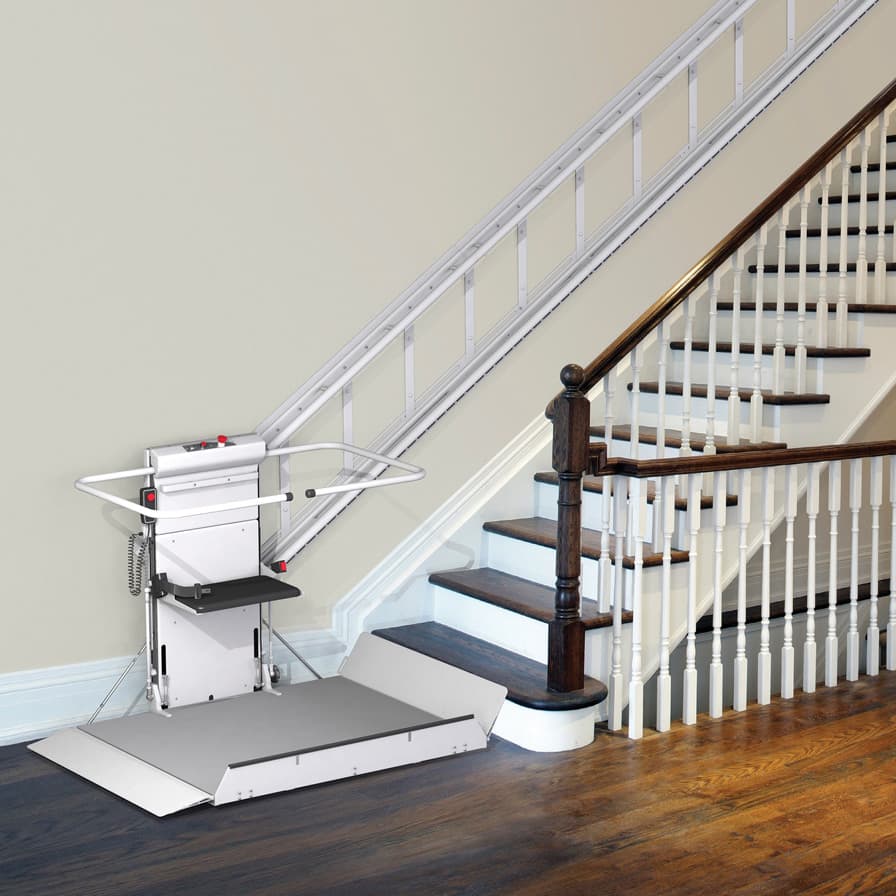

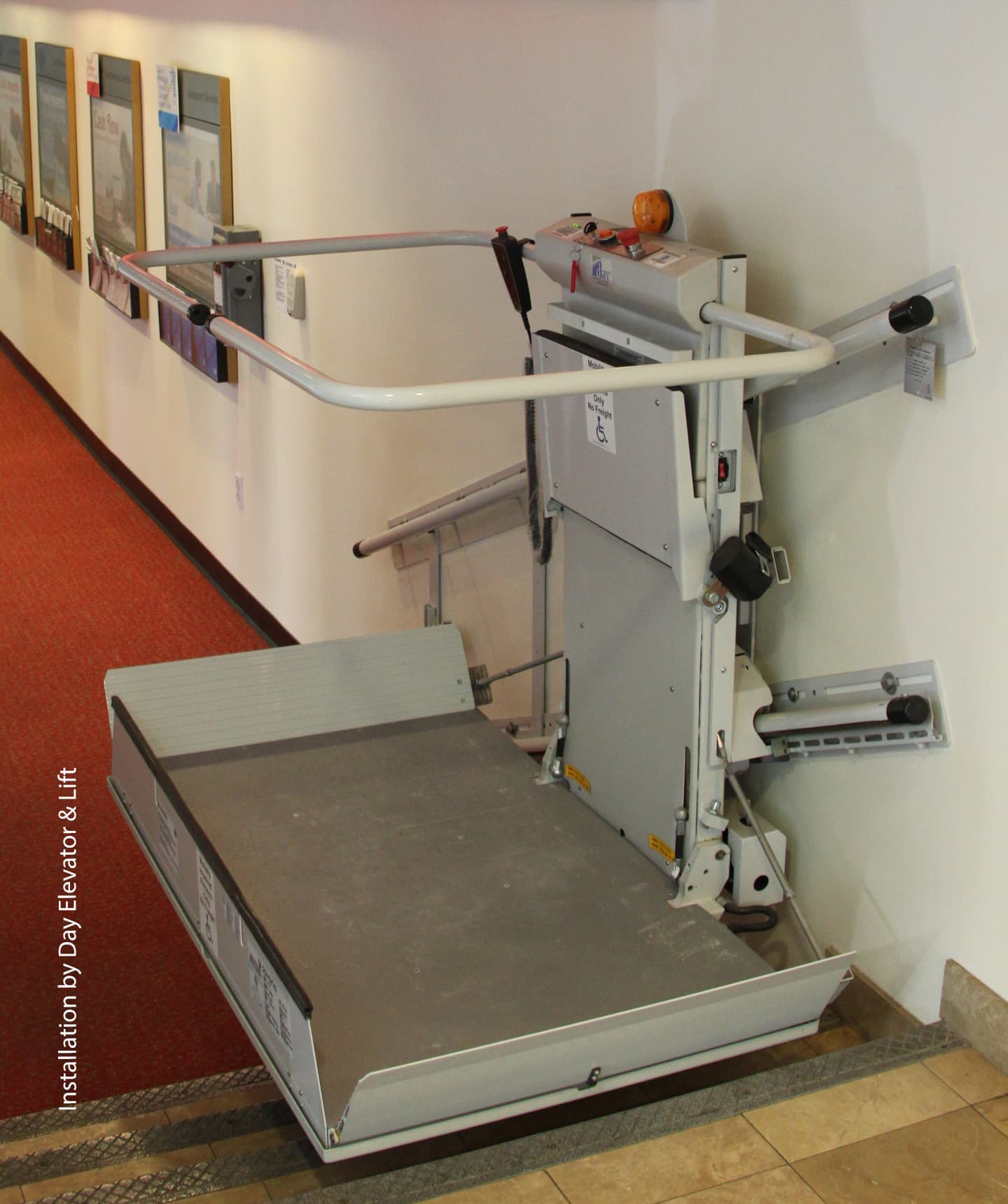

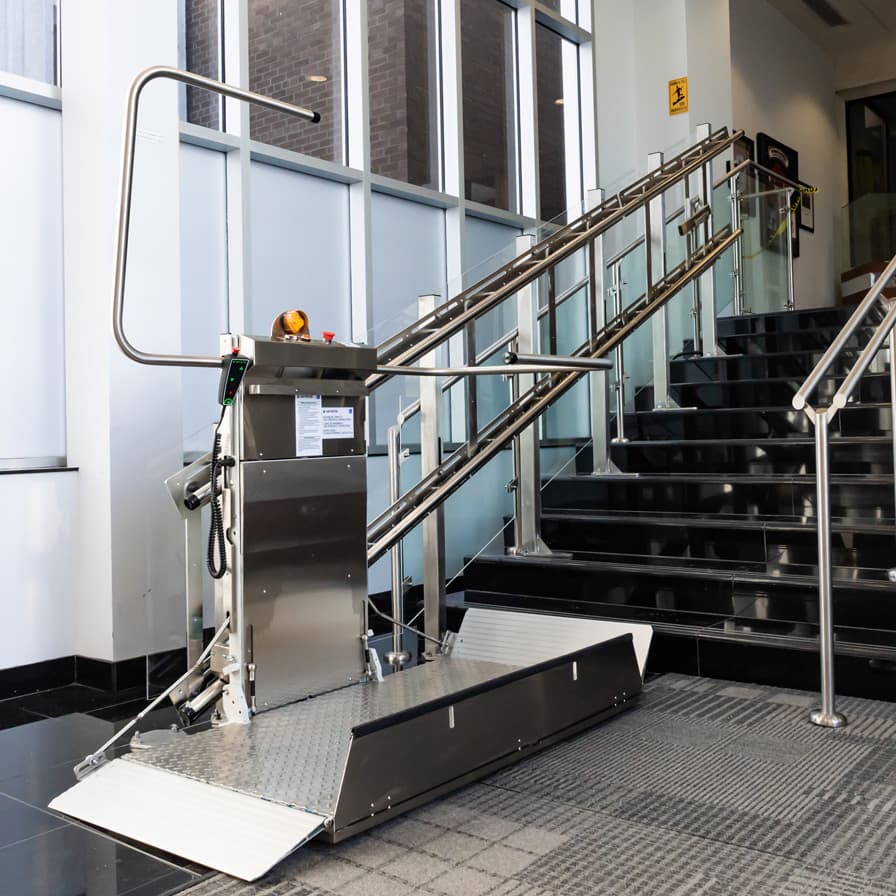

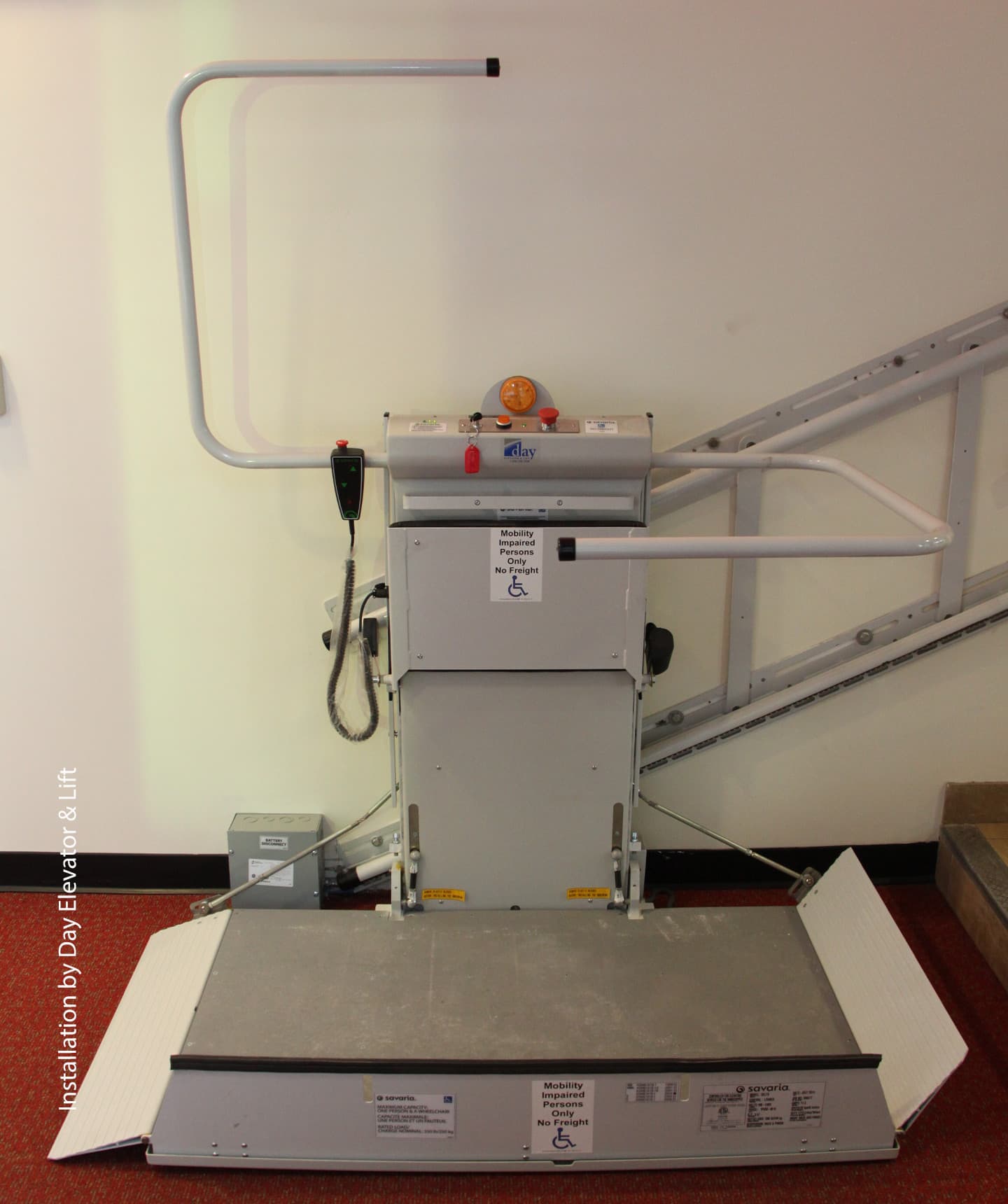

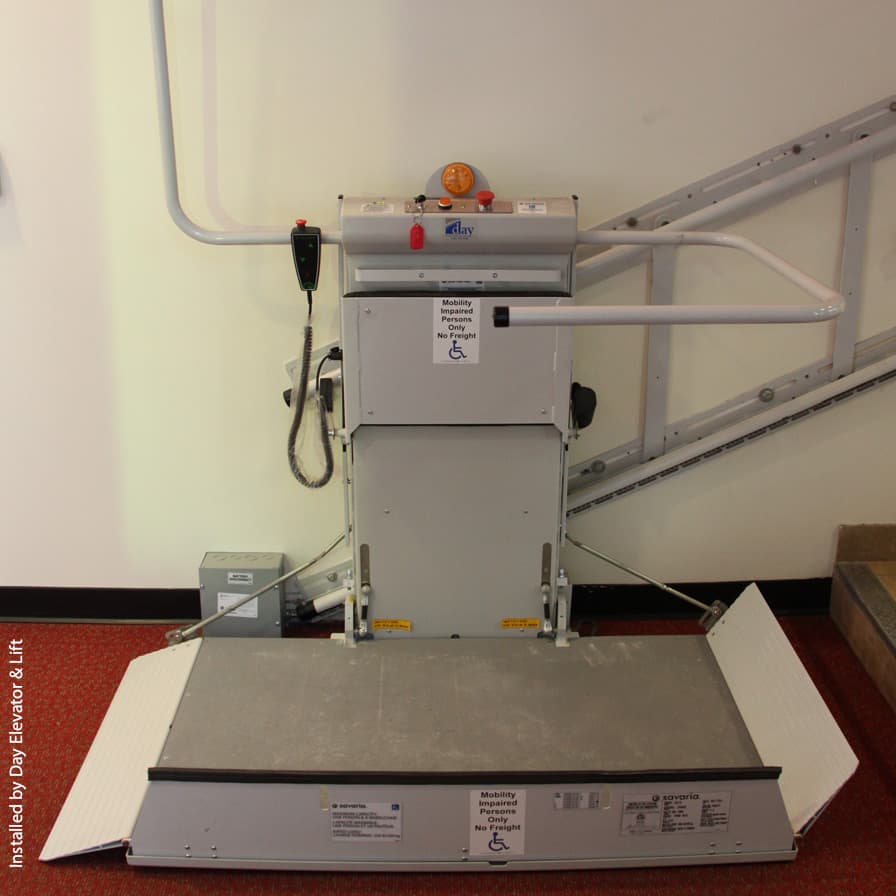

  • Provides access over a single flight of stairs in residential or commercial spaces

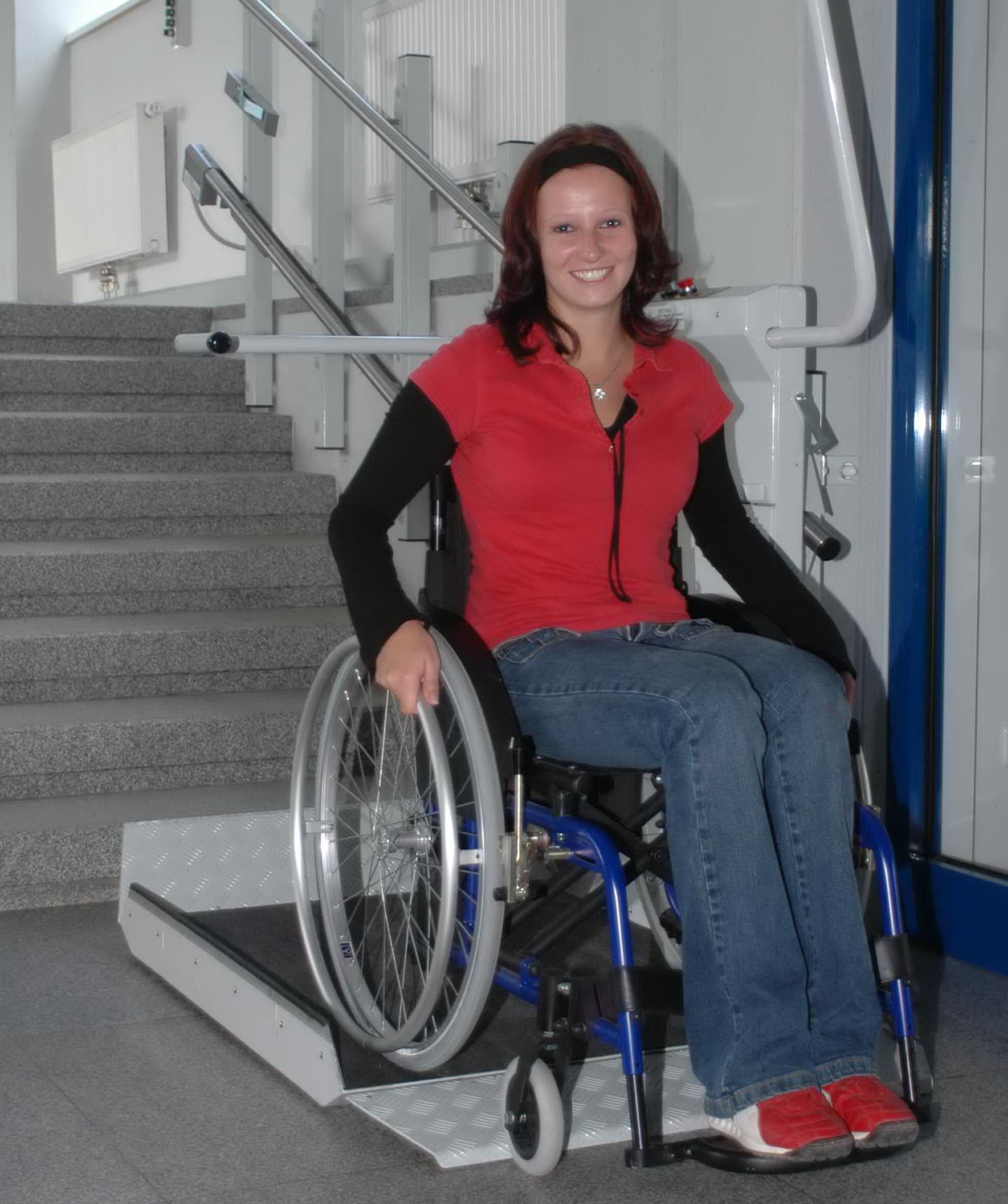

  • Designed for wheelchair users or seated passengers (550 lb capacity)
  • Space-saving folding platform; available in 4 sizes, including ADA-compliant options
  • Battery-powered with onboard motor — operates during power outages, no machine room required
  • Suitable for indoor and outdoor use (moderate climates only)

Optional Configurations:

  • Choose between straight-through or 90-degree side-exit ramps for flexible installation.

Available Platform Sizes:

  • 26.5″ W x 36″ L (673 mm x 914 mm)

  • 30.5″ W x 49.25″ L (775 mm x 1250 mm)

  • 28.35″ W x 35.43″ L (720 mm x 900 mm)

  • 28.5″ W x 44″ L (724 mm x 1118 mm)

Additional Options:

  • Motorized folding platform and safety arms

  • Fold-down seat with 330 lb (150 kg) capacity

  • Stainless steel rail (required for outdoor installations)

Commercial Package Includes:

  • Power-folding arms and platform

  • Additional battery pack

  • Audio-visual alert system

  • Folding seat

  • ADA-compliant platform

Applications: Commercial, residential, indoor, outdoor*
Stair types: Straight, single flight with constant gradient
Capacity: 550 lb (250 kg)
Optional capacity: 660 lb (300 kg) USA only
Nominal speed: 15 feet/minute (0.075 metres/second) to 20 feet/minute (0.1 metres/second)**
Minimum travel: 8″ (20 cm)
Maximum travel: 80′ (24 m)
Motor: 0.66 hp (0.5 kW)
Gradient: Constant, 20º to 45º
Power supply: 24 volts DC (battery system), 120V AC for charger
* For outdoor applications, consult your local Savaria dealer as not all climates may be suitable for outdoor installations
** Note that the speed may vary depending on the angle of the stairs
