Portable Patient Motor Lifts in Los Angeles
Description:
The CP440P offers safe mobility for impaired individuals while promoting dignity and comfort for the patient and reducing the risk of injury for the caregiver.
Portable patient motor lifts are the ideal solution for families and caregivers who need flexibility and convenience. Unlike stationary systems, portable lifts can be easily moved from room to room, making them perfect for homes with limited space or for patients who require transfers in different areas throughout the day.

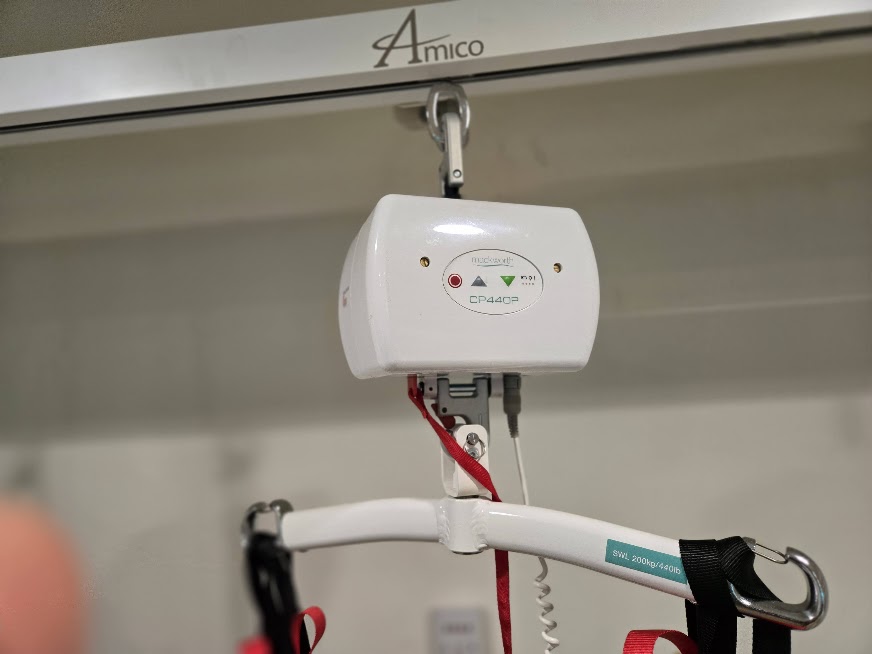

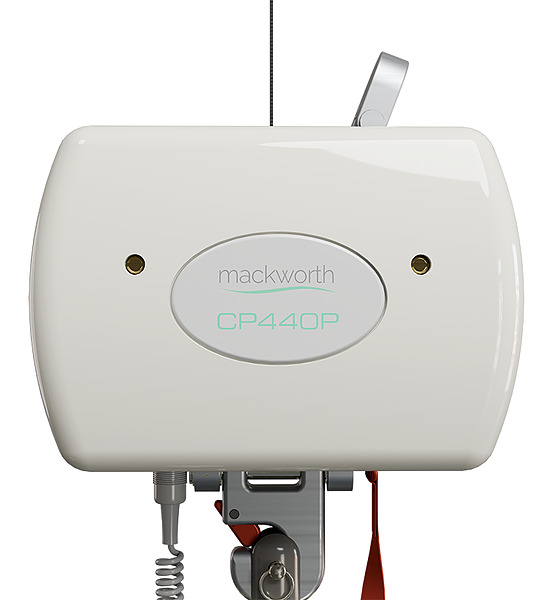

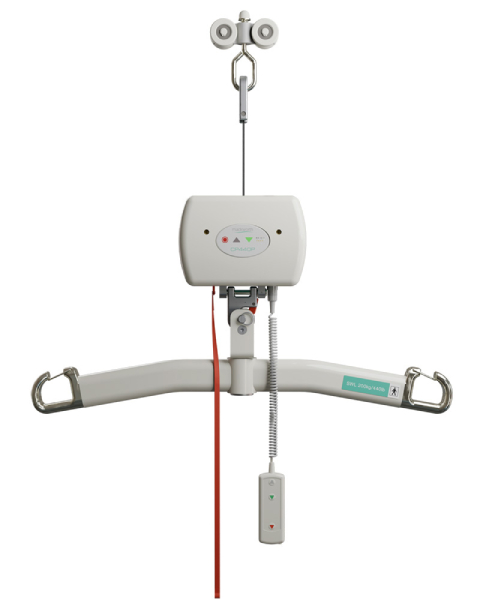

Mackworth CP440P
The CP440P Portable Ceiling Lift is designed to safely transfer individuals with limited mobility while minimizing strain and reducing the risk of injury for caregivers. It ensures every transfer is completed with dignity, comfort, and security for the user.
This lift is highly versatile, working seamlessly with portable track systems such as the Mackworth FSG440 or Mackworth Easy Fit Gantry, as well as with compatible fixed ceiling track systems. The CP440P can also be quickly moved between multiple ceiling track installations, making it an ideal choice for both permanent and temporary care environments.
Product Features
- Portable or Fixed Track – CP440P can be moved between fixed ceiling track and overhead gantry systems.
- Lift Capacity – Transfer patients up to 440 lbs. (200kg).
- Dual Control – Up, down, and emergency lowering on both hands and lift unit.
- Power Saving – Auto power-off after approximately 30 seconds of non-use.
- High Battery Capacity – Battery may support 50-60 lifts per charge.
| Max Safe Working Load: | 440 lbs. (200 kg) |
| Lift Case: | Non Flammable ABS Plastic |
| Total Weight (Unboxed): | 9.9 lbs. (4.5 kg) |
| Dimensions (L / W/ H): | 8.19″ / 6.97″ / 5.87″ |
| Rail Transfer: | Manual |
| Lifting Rangę: | Up to 82.68″ (2100 mm) |
| Lifting Speed (Unloaded): | 1.38 “/s (35 mm/s) |
| Lifting Speed (Loaded): | 0.98 “/s (25 mm/s) |
| Charger Input: | 100-240V |
| Charger Output: | 24 V – 1.330 A |
| Emergency Lower: | Electric |
| Hand Control: | Wired Electric 3 Button |
| In Track Charging: | Not Available |
| Removable from Track: | Tes |
| Duty Cycle: | 15% use, 85% rest |
| Batteries: | 2 x 12 V – 3.3 Ah (NiMH) |
Mackworth CP440P Patient Ceiling Lift – Quick Start Guide
Commissioning a CP440P Overhead Patient Lift on the FSG 440
Installing CP440P Patient Ceiling Lift onto Fixed Track System
How to Change the Lift Tape on a CP440P Portable Ceiling Lift?
How to Change the Batteries on a CP440P Portable Ceiling Lift?
Benefits of a Portable Ceiling Lift
Portability – Easily moved between rooms or care areas, one portable ceiling lift can serve multiple locations where assistance is needed.
Ease of Use – Designed with user-friendly controls, portable ceiling lifts are simple to set up and adjust, making them suitable for a variety of spaces.
Space Saving – When not in use, the lift can be quickly stored away, helping keep living and care areas uncluttered.
Safety – By providing secure transfers from bed to chair, chair to bed, or chair to toilet, these lifts reduce the risk of injury for both caregivers and individuals.
Flexibility – Compatible with different slings and attachments, portable ceiling lifts adapt to diverse needs and preferences.
Power Options – Depending on the model, units may be battery-operated for added convenience or plugged directly into a power outlet.
Gallery
At Call Before You Fall, we offer a wide range of portable patient lift motors designed for both home use and professional care settings. Our portable lifts are simple to maneuver, easy to store, and built for long-lasting reliability. Whether you need a lift that can travel between rooms in your home or a flexible option for a healthcare environment, our portable systems deliver the safety, efficiency, and comfort you can trust. With professional guidance and installation, we’ll help you choose the portable patient lift motor that best fits your lifestyle and care needs.
