Multilift Unenclosed – VERTICAL PLATFORM LIFT
-
Durable and Versatile – Wheelchair lift suitable for commercial* or residential access, offered in multiple entry/exit configurations and platform sizes.
-
Reliable Performance – ACME screw drive system carries a wheelchair and passenger between 2 stops (up to 72″).
-
Smooth Operation – Nominal speed of 8 ft/min with easy-to-use constant pressure controls.
-
Customizable Gates – Available with aluminum, acrylic, or glass inserts, including options with automatic openers.
-
Compact Design – Drive system housed in the tower; no separate machine room required. Supports up to 750 lb.
-
Indoor and Outdoor Use – Can be installed indoors or outdoors, with optional enclosure or as a mobile unit.
Features
- Durable construction: Ideal for indoor use or outdoors; includes weather-resistant lock.
- Reliable operation: From the ACME screw drive with its precision movement and strength for day-to-day use.
- Easy to install: The self-enclosed drive tower makes the unit fast and easy to install.
- Other standard features: Continuous pressure operation, keyed access on car, non-skid zinc-coated platform in three standard sizes, automatic access ramp.
- Standard finish: Beige powder-coat paint.
- Safety features: Emergency stop button on car, underpan obstruction sensors, non-skid platform, manual lowering crank, 42 1/8″ (1070 mm) side panels, keyed cab buttons and keyed call stations, automatic access ramps, backup nut and backup nut safety switch.
- Warranty: 36 months parts
| Optional configurations: Type 2, 3 and 4 Platform sizes: W34″ x L48″ (864 mm x 1219 mm) Type 2, 3, 4 W34″ x L54″ (863 mm x 1371 mm) Type 2, 3, 4 W34″ x L60″ (863 mm x 1524 mm) Type 2, 3, 4 Access ramp: 16″/406 mm, 24″/610 mm (Quebec or optional) 36″ and 42″ wide platforms optional Other options: Low profile aluminum doors, steel ULC fire-rated ProDoor, wooden door, power gate and door operators; aluminum, acrylic or clear tempered laminated inserts for gate and aluminum door; GAL or Savaria WR-500 weather resistant lock; emergency light on car; fixed access ramp; commercial package (audible alarm on car, grab rail); telephone or ADA handsfree phone; joystick; 60 mm buttons; wired hand pendant. Keyless operation if desired. This unit can also be configured to travel up to 72″ (1828 mm). Also available for residential, and USA commercial installations, the Savaria One Touch Alert System. Using an owner-supplied, pre-paid nano sim card*, this one-button system installed by your Savaria dealer, provides two-way communication to pre-programmed emergency contacts in case of emergency. |
Applications: Commercial*, residential, indoors, outdoors
Standard capacity: 750 lb (340 kg)
Maximum travel distance: 48″ (121.92 cm), optionally up to 72″ (182.88 cm)
Nominal speed: 8 ft/min (0.04 m/s)
Drive/motor: ACME screw drive and back-up nut, 1 hp, relay logic controller
Power supply: 120 VAC, 15 A, 60 Hz, single phase (must be a dedicated electrical line).
*complies with ASME A18.1 (US), and B.355 & B.613 (Canada), state and local codes may differ

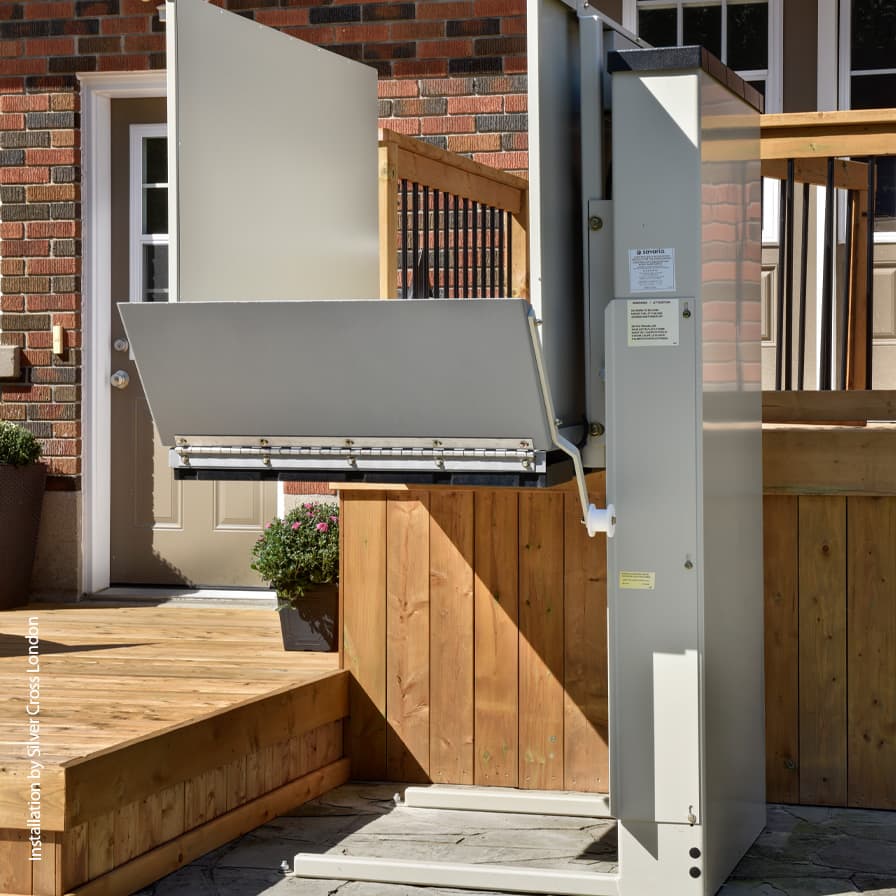

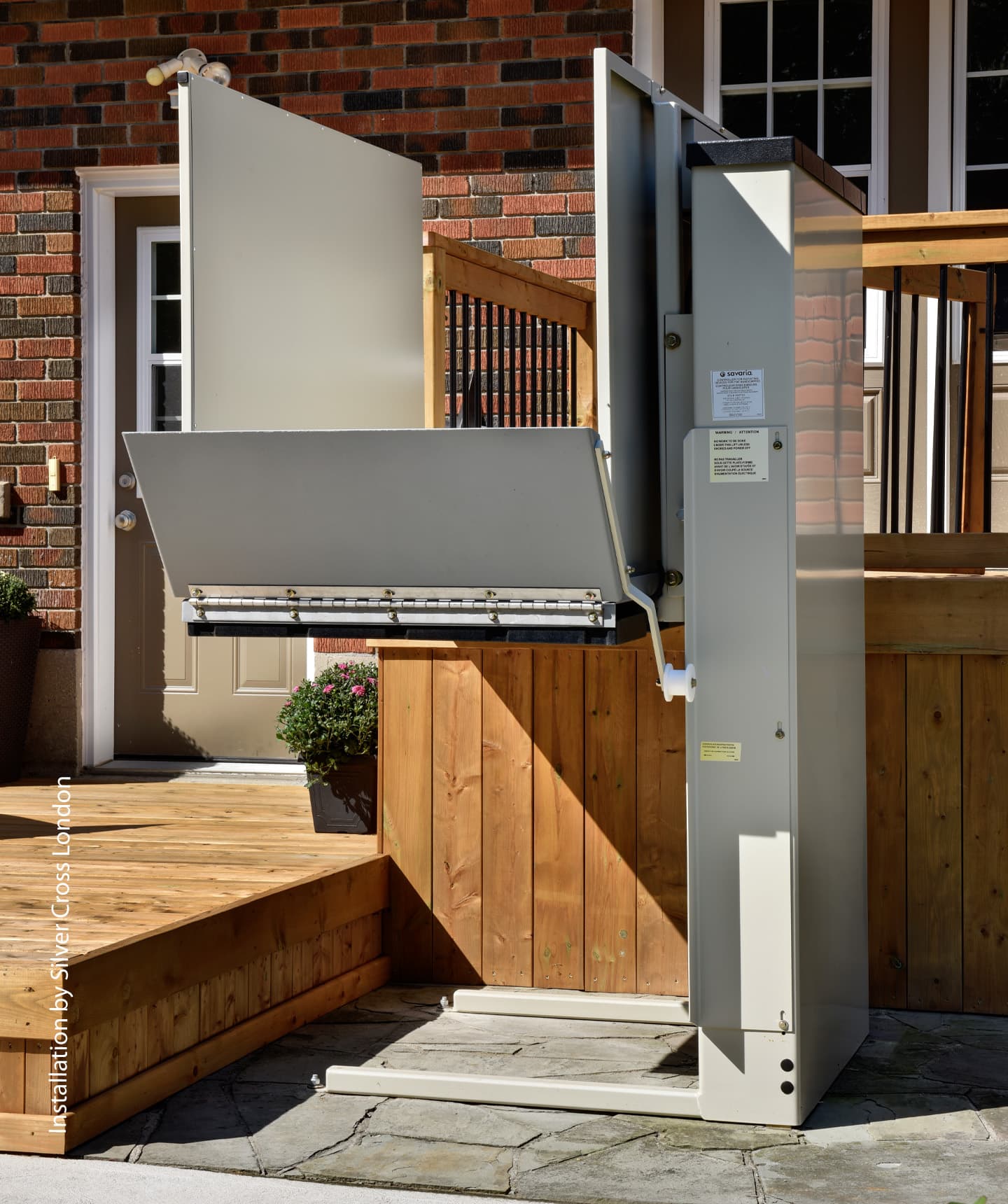

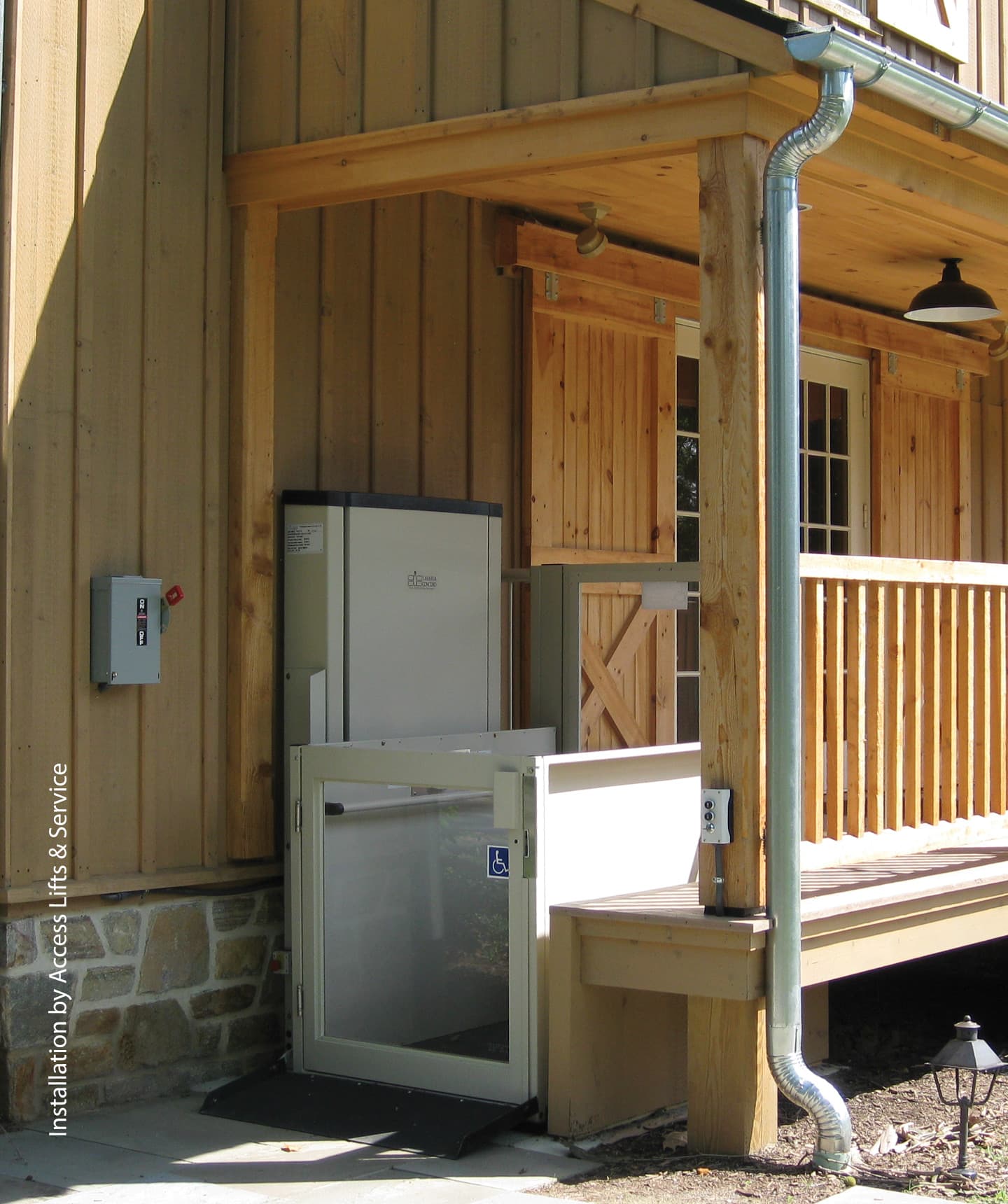

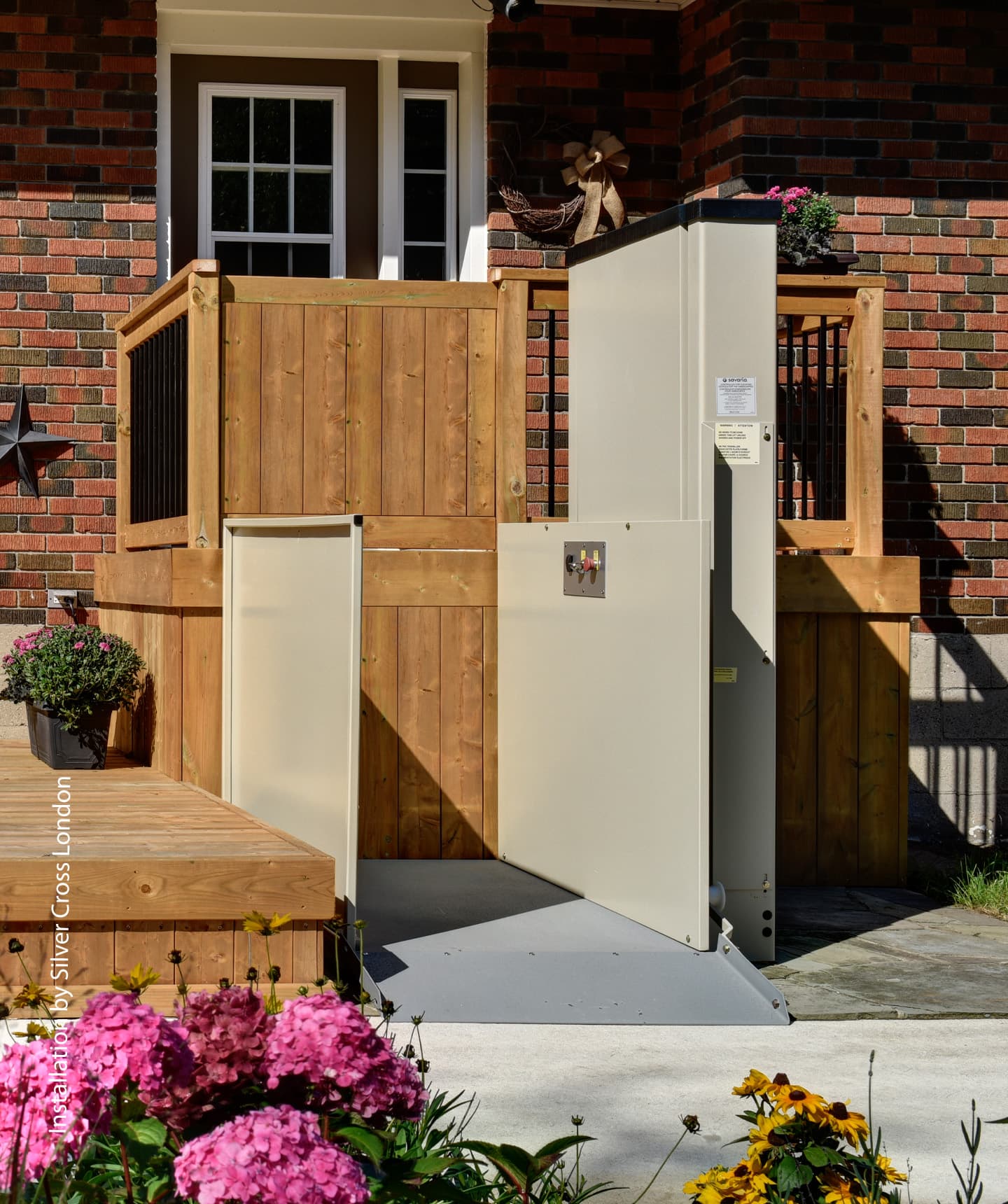

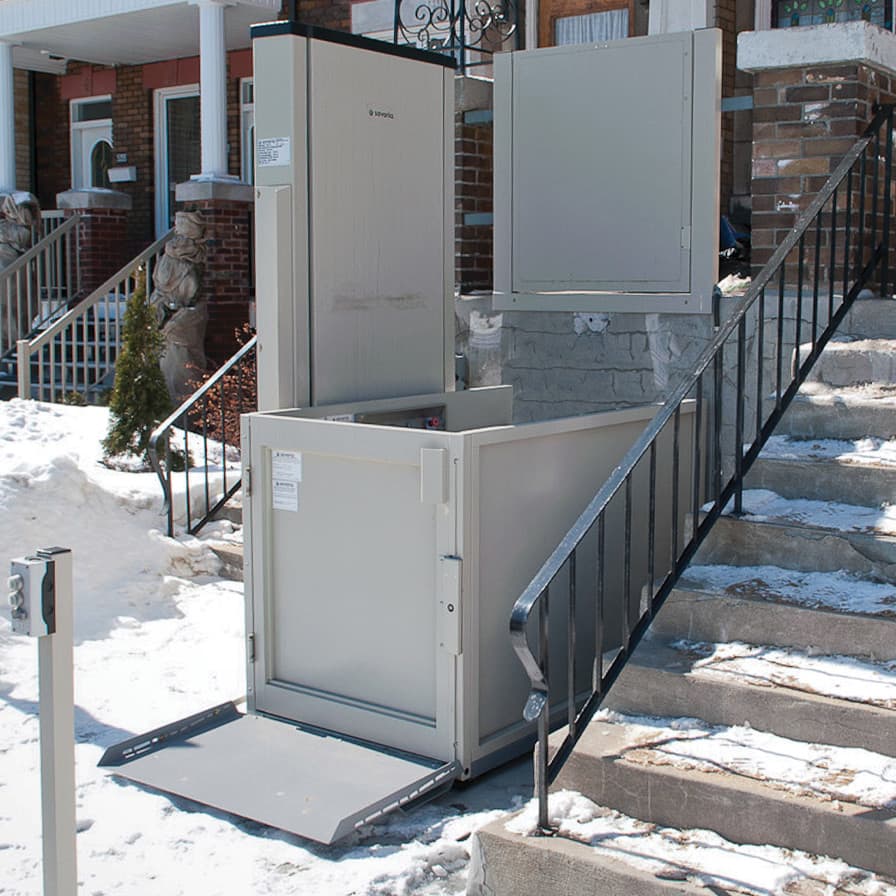

Gallery
